100KW 215KWH BESS Energy Storage System

Industrial-Grade Solar + Battery Storage Solution for Commercial & Industrial Applications

Highlights:

• 215KWh LiFePO4 battery system (768V 280AH) with intelligent BMS and active cell balancing
• 100KW three-phase on-grid inverter (MAX 100KTL3-X LV) with MPPT 250-960V, RS485 communication
• Premium solar array: 165 units of 590W N-type TopCon bi-facial panels (97.35KW total), 23% efficiency, CE/TUV/ROHS certified
• All-in-one outdoor energy storage cabinet with air-duct cooling, industrial refrigeration AC, and built-in fire fighting system
• S-EMS energy management system with three-level architecture (C-EMS / H-EMS / S-EMS), remote monitoring via phone and PC
• Scalable multi-cabinet parallel configuration for MWh-level energy storage expansion
• Ideal for factories, hospitals, schools, resorts, villages, and commercial buildings

	Solar Panel 1. Using N-type 16-18BB solar cell, the power generation efficiency is 25.5% 2. Using fully automatic slicing process,100%guarantees that there are no gaps in solarcell. 3. Quality control:Cell efficiency /cell power sorting 4. 4times EL test 5. The automatic confluence welding processof cells is adopted to ensure no false welding 6.Fully automatic glue filling process toensure the service life of solar panels up to 30 years 7. Packed in wooden boxes to ensure the safe delivery of the goods

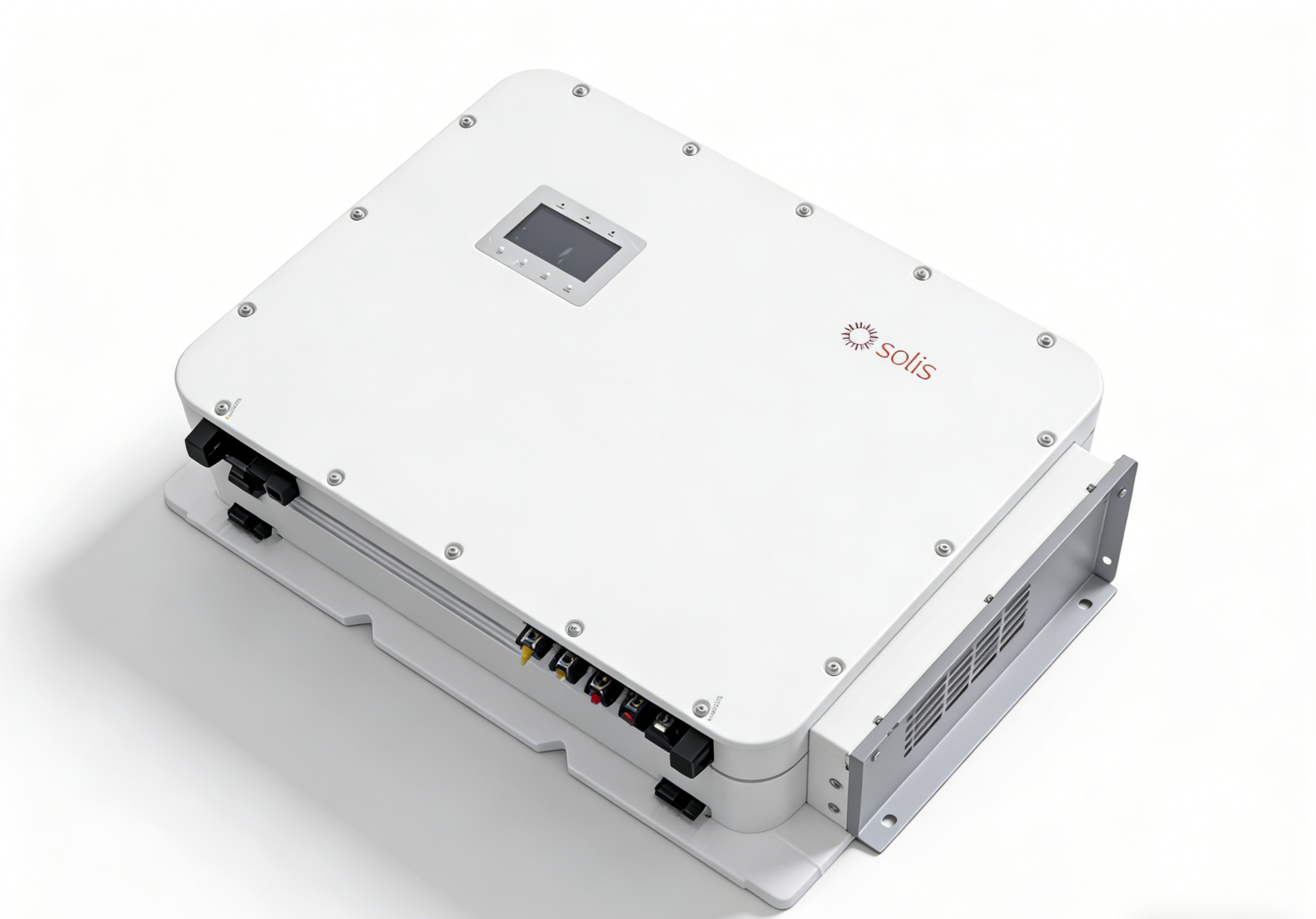

	On and off grid hybrid inverter 1.Perfect function: get the power to the grid,AC Grid Charger Build In 2. Protective Functions: Protection Against Over load, Short-Circuit, Over Heat, 3. Anti-isolated Island Efficiency,Polarity Joint-Reversed，5Years Warranty
	[Key Specifications] • Rated Power: 100KW • Battery Capacity: 215KWH (768V 280AH) • Battery Configuration: 14.3KWH × 15 modules • Cycle Life: >6000 cycles • Inverter: 100KW hybrid on/off-grid with built-in AC charger • Solar Panel: 165pcs 590W N-type TopCon (48V, 23% efficiency) • System Daily Output: 600KWH • Max Load Power: 100KW

Key Advantages

High Energy Density & Compact Design

The 215KWh lithium battery system delivers exceptional energy capacity in a single outdoor-rated cabinet with air-duct cooling and industrial refrigeration air conditioning. The compact design maximizes power output per square meter, making it ideal for space-constrained commercial and industrial facilities.

Intelligent Battery Management System (BMS)

The system features a comprehensive BMS architecture with collection points, high-voltage box (Level 2 BMU/BCU), and continuous cell-level monitoring. The BMS ensures optimal charge/discharge cycles, cell balancing, and real-time thermal management for maximum battery longevity.

Scalable Architecture

Support for multi-cabinet parallel connection enables seamless capacity expansion from hundreds of KWh to MWh-scale installations. The S-EMS (Site Energy Management System) coordinates multiple cabinets with three-level networking (C-EMS / H-EMS / S-EMS) for unified control and monitoring.

Smart Energy Management (S-EMS)

The three-level S-EMS architecture provides comprehensive energy monitoring including power generation, charging, electricity consumption, and revenue tracking. Remote monitoring via phone and computer, with email and SMS alert notifications. Supports wired, wireless, or hybrid networking methods.

Versatile Application Support

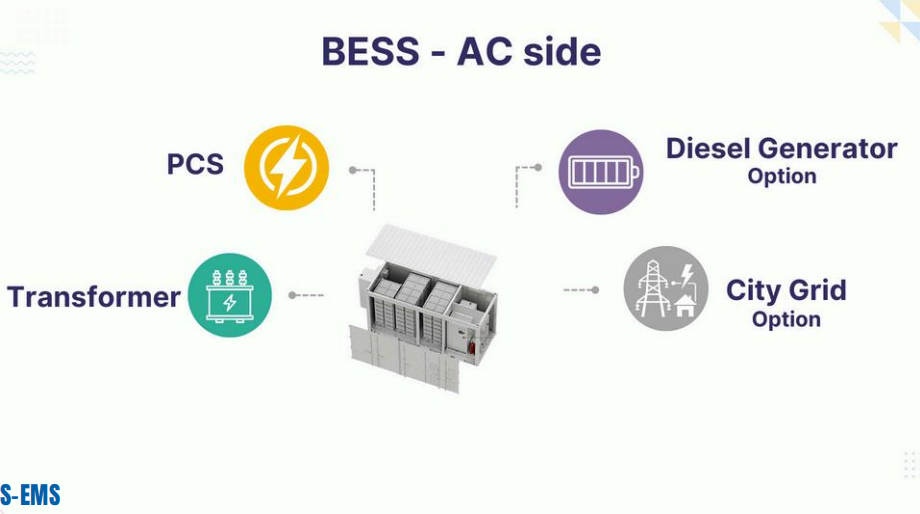

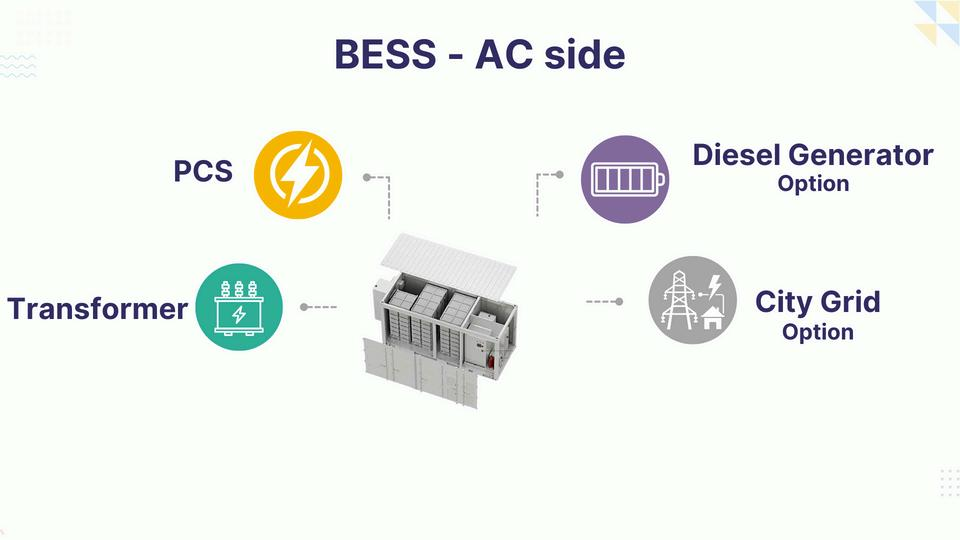

The system supports simultaneous access of loads, lithium battery, city grid or diesel generator, and photovoltaic. Maintenance bypass switch capability improves system availability. Visual design with remote debugging and intelligent operation and maintenance significantly improves energy operation efficiency.

Comprehensive Warranty Coverage

• Solar Panels: 25-year linear power output warranty
• On-grid Inverter: 5-year warranty
• Battery Cabinet: 10-year performance warranty
• Bracket System & Cables: 10-year warranty

Application Scenarios

Factories & Manufacturing Facilities

Industrial manufacturing plants benefit from peak demand charge reduction and production continuity. The 100KW power rating supports heavy machinery loads, while the 215KWh capacity provides extended backup during grid outages or peak demand periods.

Hospitals & Healthcare Facilities

Critical healthcare facilities require uninterrupted power supply. The system provides reliable backup for life-support equipment, HVAC, and critical care systems with seamless grid-to-battery transfer.

Schools & Educational Institutions

Educational campuses can reduce electricity costs through peak shaving and load shifting while ensuring reliable power for laboratories, IT infrastructure, and security systems.

Resorts & Hospitality Venues

Hotels and resorts benefit from reduced demand charges and enhanced guest experience with reliable power for air conditioning, lighting, and entertainment systems during peak periods.

Villages & Community Microgrids

Remote villages and community microgrids can achieve energy independence through solar generation combined with battery storage, reducing reliance on diesel generators and unstable grid connections.

FAQ
Q1: What is the warranty period for the 100KW 215KWH BESS system?
A: Battery cabinet & bracket/cabling: 10-year warranty; 100KW on-grid inverter: 5-year warranty; solar panels: 25-year linear power output warranty. Global after-sales support is provided.

Q2: Can this BESS system operate in off-grid or island mode?
A:Mainly designed for on-grid use. It supports peaking power loads and simultaneous connection of loads, batteries, grid/diesel generators and PV systems. Custom configuration is required for pure off-grid/island-mode operation.

Q3: How does the S-EMS energy management system work?
A: Adopts a three-level (Center/Aggregation/Site) management architecture with standard interfaces for one-click networking. It enables real-time monitoring of power generation, charging, power consumption and revenue, supports mobile/PC access, and sends email & SMS alerts.

Q4: What is the battery operating temperature range?

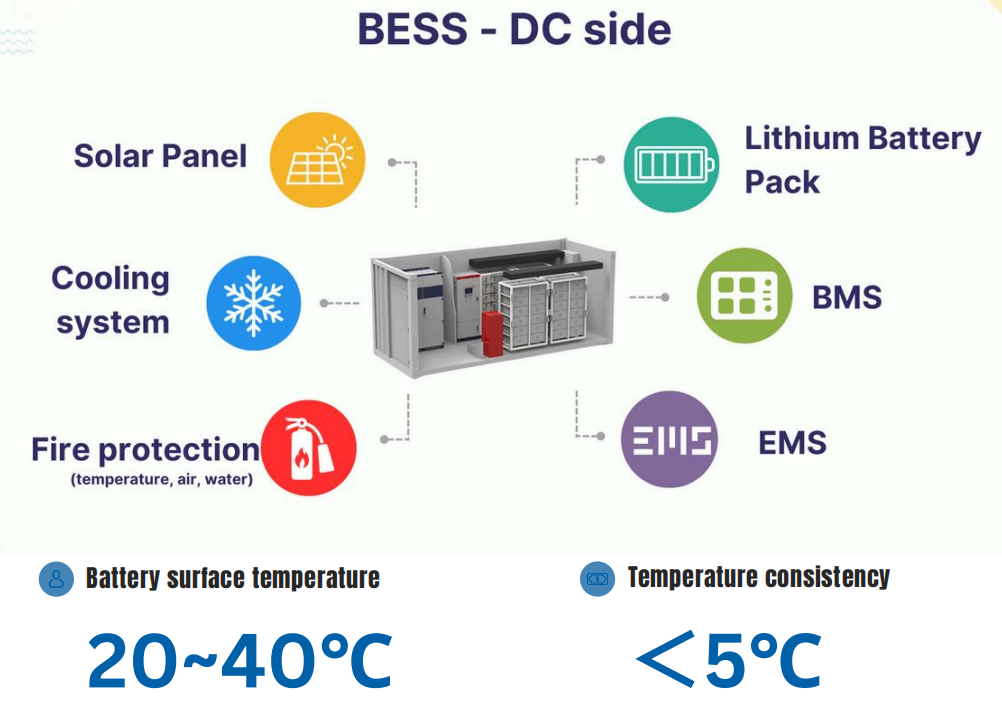

A: Equipped with duct cooling and industrial air conditioning, keeping battery surface temperature at 20°C–40°C. The temperature difference between all battery modules is controlled within 5°C to ensure stable performance and long service life.

Q5: Is the system compatible with existing solar installations?
A:With a 250V–960V DC wide MPPT voltage range and 3 MPPT inputs, plus 600V rated voltage and 380–415V grid voltage adaptation, the system is compatible with most industrial and commercial existing solar PV installations.
