40KW 96KWH BESS Energy Storage System | Industrial Solar Battery Cabinet

Highlights:

• High-capacity 96KWh lithium battery storage with >6000 cycles @ 80% DOD
• 40KW hybrid inverter supports both on/off-grid operation with seamless switching

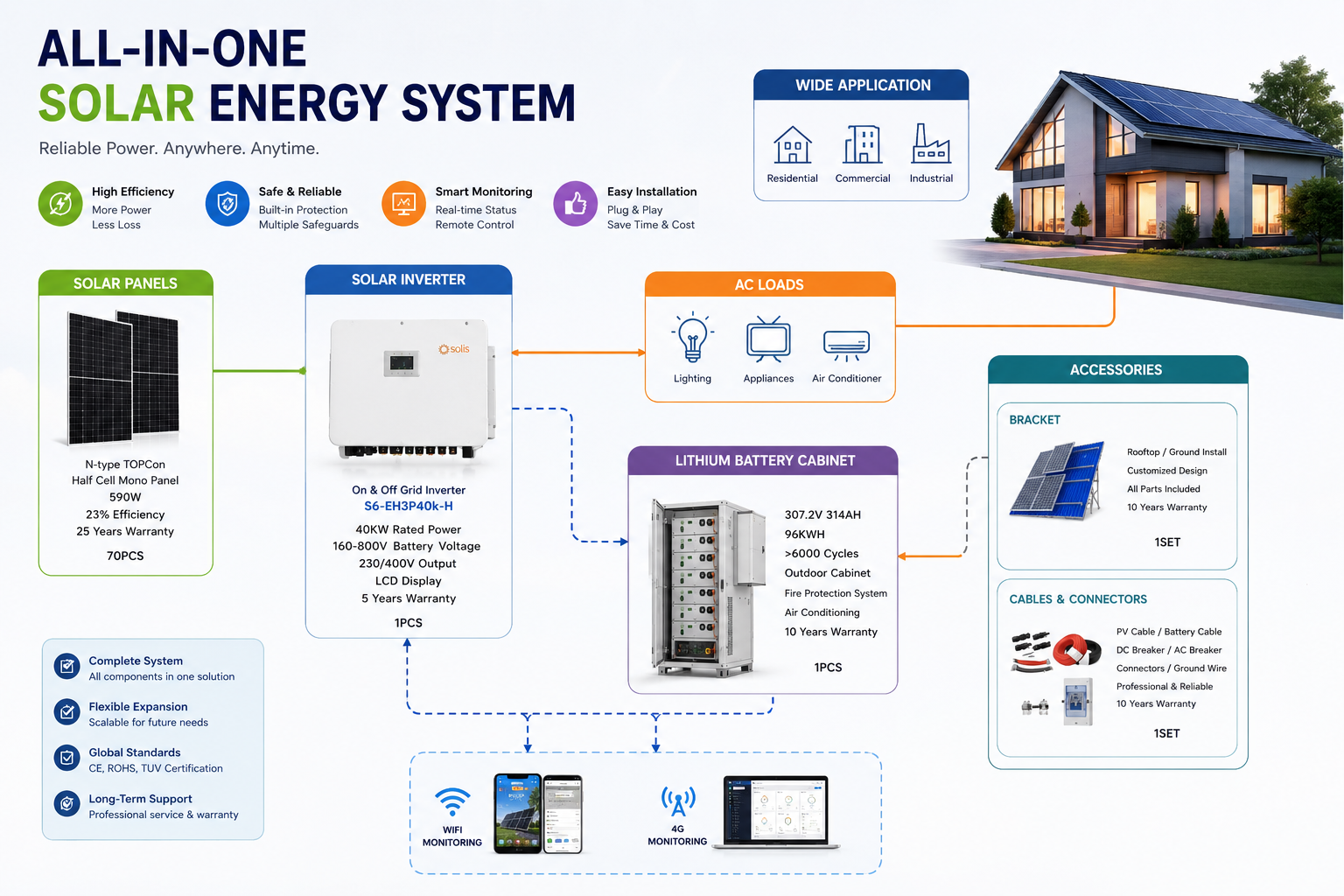

• Complete all-in-one system: solar panels + battery cabinet + BMS + mounting
• Intelligent BMS with real-time monitoring, cell balancing & multi-layer protection
• Peak shaving, demand charge reduction & time-of-use optimization
• Reliable backup power during grid outages — auto island mode < 20ms
• Modular scalable design — parallel connection for future expansion

	Solar Panel 1. Using N-type 16-18BB solar cell, the power generation efficiency is 25.5% 2. Using fully automatic slicing process,100%guarantees that there are no gaps in solarcell. 3. Quality control:Cell efficiency /cell power sorting 4. 4times EL test 5. The automatic confluence welding processof cells is adopted to ensure no false welding 6.Fully automatic glue filling process toensure the service life of solar panels up to 30 years 7. Packed in wooden boxes to ensure the safe delivery of the goods
	On and off grid hybrid inverter 1.Perfect function: get the power to the grid,AC Grid Charger Build In 2. Protective Functions: Protection Against Over load, Short-Circuit, Over Heat, 3. Anti-isolated Island Efficiency,Polarity Joint-Reversed，5Years Warranty
	[Key Specifications] • Rated Power: 40KW • Battery Capacity: 96KWH (307.2V 314AH) • Battery Configuration: 16KWH × 6 modules • Cycle Life: >6000 cycles • Inverter: 40KW hybrid on/off-grid with built-in AC charger • Solar Panel: 70pcs 590W N-type TopCon (41.97V, 23% efficiency) • System Daily Output: 247.8KWH • Max Load Power: 40KW

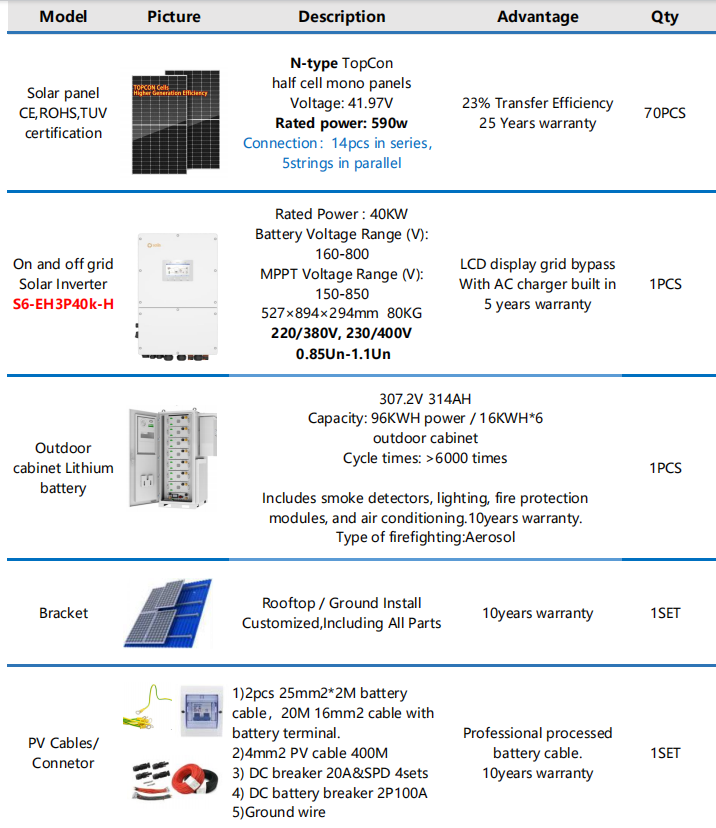

System Configuration

FAQs

Q: What is the 40KW 96KWH BESS suitable for?

A: Ideal for factory peak shaving, demand charge reduction, commercial backup power, solar + storage hybrid systems, and small to medium industrial facilities. The 40KW output handles most commercial loads while 96KWh provides several hours of autonomy.

Q: Can I expand the battery capacity later?

A: Yes, multi-cabinet parallel connection is supported. Add more 16KWh modules or complete 96KWh cabinets to scale capacity as your energy needs grow.

Q: What is the warranty coverage?

A: Solar panels: 25 years | Inverter: 5 years | Battery system: 10 years | Mounting bracket & cables: 10 years. Free system design and online installation guidance included.

Q: How long does installation take?

A: Typically 1-2 days for the solar panel array and mounting system. Complete system commissioning including inverter setup and BMS configuration can be completed within 2-3 days by a qualified technician.

Q: Does it work during grid outages?

A: Yes, the hybrid inverter has grid bypass function and provides seamless backup power when the grid goes down. The system automatically switches to island mode within milliseconds (< 20ms).

Q: What maintenance is required?

A: Minimal maintenance required. Integrated HVAC maintains optimal battery temperature automatically. BMS provides real-time monitoring of cell voltage, temperature, and SOC. Annual inspection recommended.

Q: Is this system certified for export markets?

A: Yes, supports CE, IEC, UL, UN38.3 certifications as required. Documentation provided for customs clearance in Europe, North America, Southeast Asia, Africa, and South America.
