80KW 193KWH BESS Energy Storage System | Large-Scale Commercial Battery Cabinet

Highlights:

• Massive capacity 193KWh LiFePO4 battery (614.4V 314AH, 16KWh x 12 modules) with >6000 cycles @ 80% DOD
• 80KW on/off-grid hybrid inverter with built-in AC charger, MPPT 150-950V, LCD display & grid bypass
• Premium solar array: 128pcs 650W N-type TopCon panels (83.2KW total), 24% efficiency, CE/TUV certified
• All-in-one outdoor cabinet with built-in air conditioning, aerosol fire suppression & smoke detection
• Multi-cabinet parallel connection support — scale from hundreds of KWH to MWH-level storage
• Compact footprint design maximizes power density per square meter
• Ideal for large factories, manufacturing plants, industrial parks, and data center backup

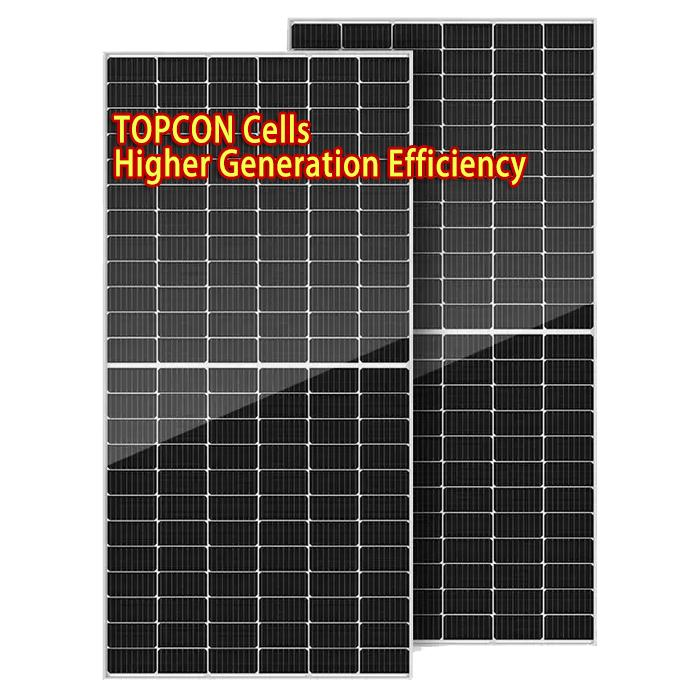

	Solar Panel 1. Using N-type 16-18BB solar cell, the power generation efficiency is 25.5% 2. Using fully automatic slicing process,100%guarantees that there are no gaps in solarcell. 3. Quality control:Cell efficiency /cell power sorting 4. 4times EL test 5. The automatic confluence welding processof cells is adopted to ensure no false welding 6.Fully automatic glue filling process toensure the service life of solar panels up to 30 years 7. Packed in wooden boxes to ensure the safe delivery of the goods

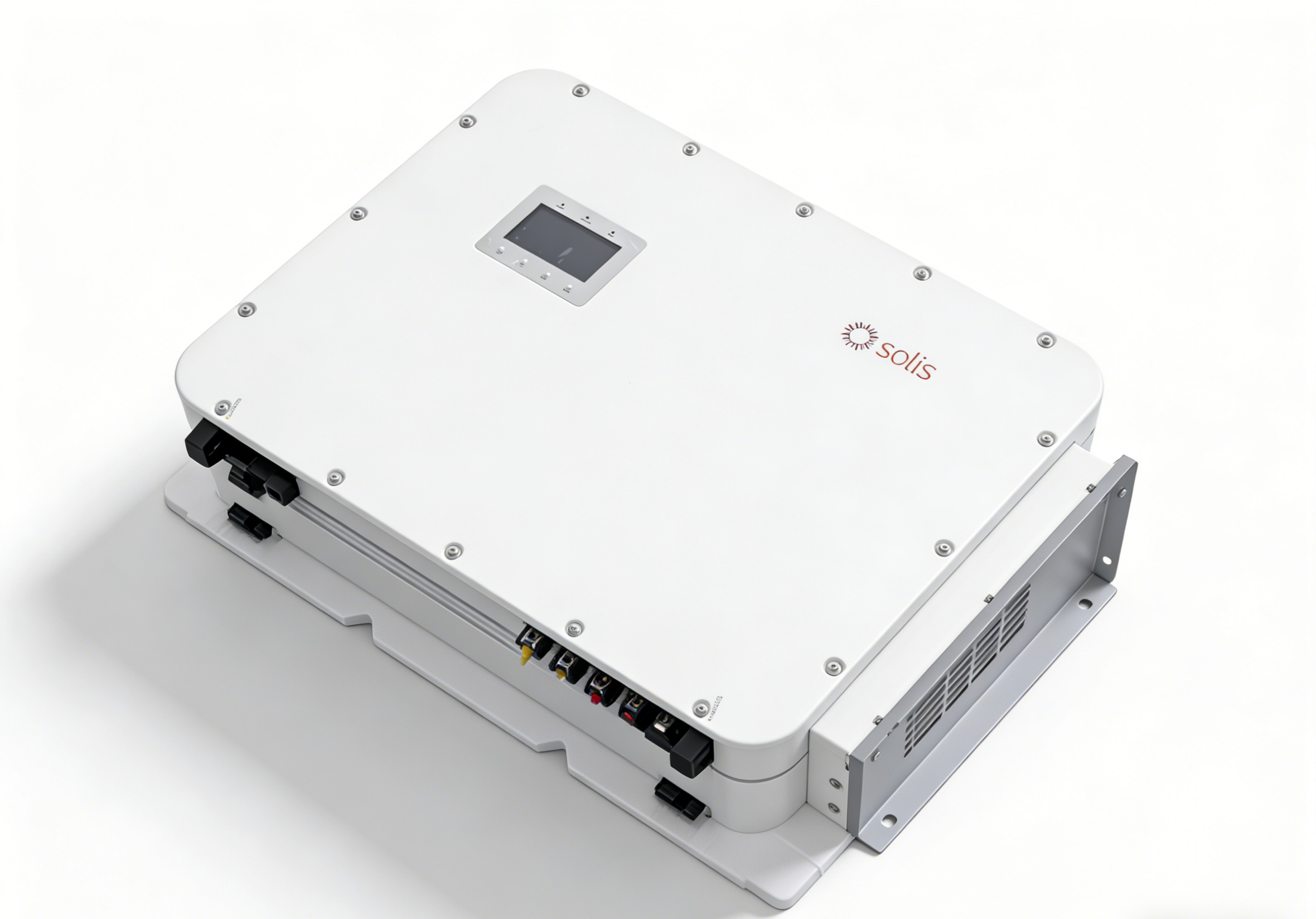

	On and off grid hybrid inverter 1.Perfect function: get the power to the grid,AC Grid Charger Build In 2. Protective Functions: Protection Against Over load, Short-Circuit, Over Heat, 3. Anti-isolated Island Efficiency,Polarity Joint-Reversed，5Years Warranty
	[Key Specifications] • Rated Power: 80KW • Battery Capacity: 193KWH (614.4V 314AH) • Battery Configuration: 16KWH × 12 modules • Cycle Life: >6000 cycles • Inverter: 80KW hybrid on/off-grid with built-in AC charger • Solar Panel: 128pcs 590W N-type TopCon (48V, 23% efficiency) • System Daily Output: 480KWH • Max Load Power: 80KW

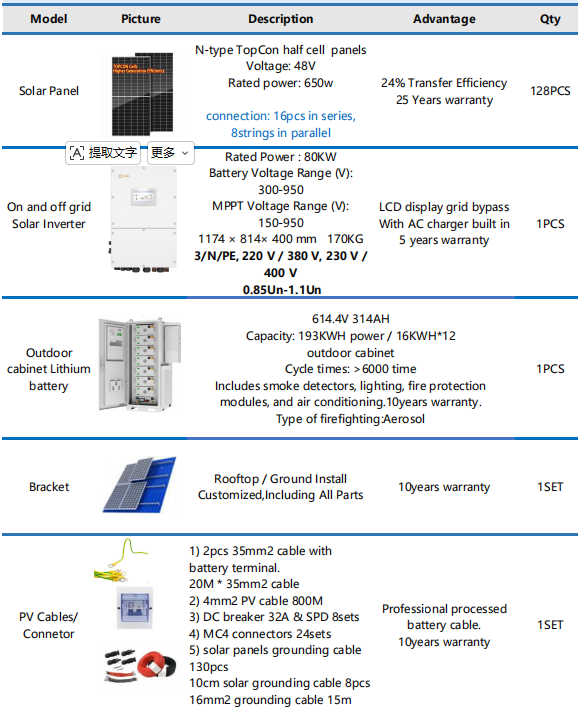

System Configuration

FAQ

Q1: What is the warranty period for this 80KW 193KWH BESS system?

The battery modules come with a 10-year performance warranty (retaining 80%+ capacity). The inverter is covered by a 5-year standard warranty, extendable to 10 years. Cabinet and BMS carry a 3-year warranty. Full after-sales support and spare parts are available through our service network.

Q2: Can this system operate in off-grid (island) mode?

Yes. The 80KW hybrid inverter supports both on-grid and off-grid operation with automatic switching (<10ms transfer time). In off-grid mode, the system manages PV charging, battery discharging, and can handle generator input for hybrid operation.

Q3: How long does it take to fully charge the 193KWH battery?

With the 80KW hybrid inverter's 80A AC charging capability, a full charge from empty takes approximately 3 hours. With sufficient solar generation (83.2KW PV array), the system can achieve full charge in 3-4 hours under peak sun conditions.

Q4: What is the operating temperature range of the battery cabinet?

The cabinet is designed for -20C to +55C ambient temperature with built-in air conditioning maintaining optimal battery temperature (15-35C). This ensures stable performance in extreme climates from desert heat to cold winter conditions.

Q5: Is the system compatible with existing solar installations?

Yes. The inverter has a wide MPPT voltage range of 150-950V DC, making it compatible with most existing solar arrays. The system can be configured as a retro-fit solution to add battery storage to an existing grid-tied PV system.

Q6: What safety certifications does the system have?

The system is fully certified with CE, TUV, IEC 62619 (battery safety), UN38.3 (transportation), and IEC 62109 (inverter safety). The cabinet includes aerosol fire suppression, smoke detection, and Grade A+ LiFePO4 battery cells.

Q7: What is the total weight and dimensions of the cabinet?

The integrated outdoor cabinet measures approximately 2400(H) x 1600(W) x 1000(D) mm and weighs approximately 3300KG (including 12 battery modules, inverter, and BMS). Forklift pockets and lifting lugs are provided for transport and installation.

Q8: How is after-sales technical support provided?

We provide 24/7 online technical support via phone, email, and remote monitoring platform. On-site commissioning support is available. Spare parts are stocked at regional warehouses for quick dispatch. Remote firmware updates and system diagnostics are supported through the built-in IoT module.
