100KW 209KWH Commercial Battery Storage System | Outdoor BESS Cabinet

100KW 209KWH BESS Energy Storage System

High-Capacity Industrial-Grade Solar + Storage Solution for Large C&I Applications

Suitable For Daily Power Consumption: 600KWH  |  Allowable Max Loads Power: 100KW

Highlights:

• Massive capacity 209KWh LiFePO4 battery (665.6V 314Ah, 16KWh x 13 modules) with >6000 cycles @ 80% DOD
• 100KW on/off-grid hybrid inverter with built-in AC charger, MPPT 150-850V, LCD display & grid bypass
• Premium solar array: 160pcs 650W N-type TopCon panels (104KW total), 24% efficiency, CE/TUV certified
• All-in-one outdoor cabinet with built-in air conditioning, aerosol fire suppression, smoke detection & 10-year warranty
• Integrated distribution box with DC breakers, SPD, and type disconnectors for full system protection
• Compact footprint design maximizes power density per square meter
• Ideal for large factories, manufacturing plants, industrial parks, and data center backup

	Solar Panel 1. Using N-type 16-18BB solar cell, the power generation efficiency is 25.5% 2. Using fully automatic slicing process,100%guarantees that there are no gaps in solarcell. 3. Quality control:Cell efficiency /cell power sorting 4. 4times EL test 5. The automatic confluence welding processof cells is adopted to ensure no false welding 6.Fully automatic glue filling process toensure the service life of solar panels up to 30 years 7. Packed in wooden boxes to ensure the safe delivery of the goods

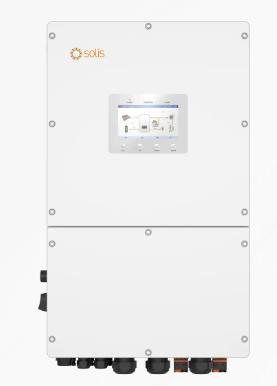

	On and off grid hybrid inverter 1.Perfect function: get the power to the grid,AC Grid Charger Build In 2. Protective Functions: Protection Against Over load, Short-Circuit, Over Heat, 3. Anti-isolated Island Efficiency,Polarity Joint-Reversed，5Years Warranty
	[Key Specifications] • Rated Power: 100KW • Battery Capacity: 209KWH (665.6V 314AH) • Battery Configuration: 16KWH × 13 modules • Cycle Life: >6000 cycles • Inverter: 100KW hybrid on/off-grid with built-in AC charger • Solar Panel: 160pcs 590W N-type TopCon (48V, 23% efficiency) • System Daily Output: 600KWH • Max Load Power: 100KW

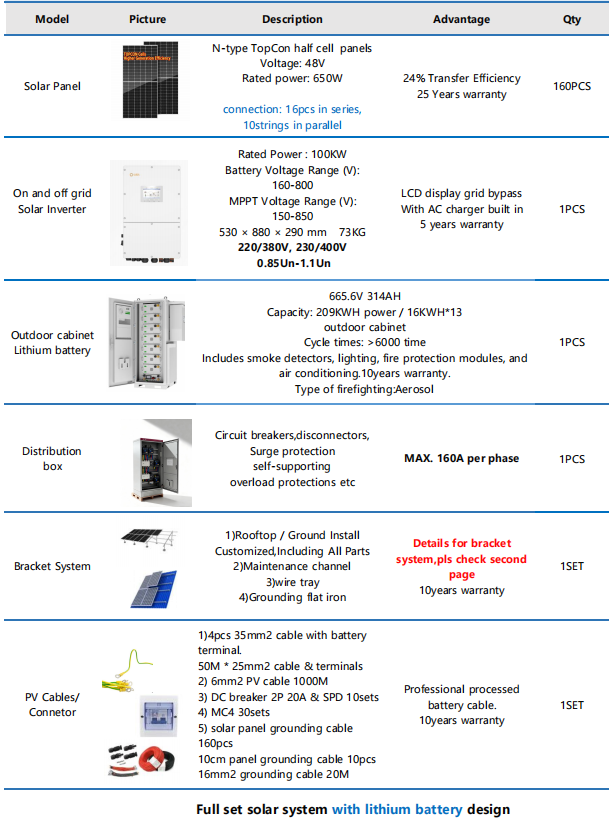

System Configuration

Key Advantages

• High Energy Density: 209KWh in a single outdoor cabinet, maximizing power per footprint
• Ultra-long cycle life: >6000 cycles to 80% DOD, LFP chemistry with active balancing BMS
• Compact & Complete: Outdoor cabinet with integrated AC cooling, fire suppression, smoke detection, and BMS
• Scalable: Support multi-cabinet parallel configuration for MWH+ capacity expansion
• Smart EMS: Automatic peak shaving, load shifting, and off-grid backup management
• Turnkey Solution: Pre-wired, pre-configured cabinet reduces on-site installation time by 60%
• Built-in AC Charger: Hybrid inverter with AC charging capability for flexible energy management

Application Scenarios

1. Large Factories & Manufacturing: Reduce peak demand charges and ensure production continuity
2. Industrial Parks: Centralized energy storage for park-wide load management and PV integration
3. Data Center Backup: Critical UPS-grade backup power for mission-critical facilities
4. Commercial Buildings: Peak shaving, TOU arbitrage, and emergency power for elevators & security
5. Microgrid & Remote Sites: Island-mode operation for off-grid industrial and mining operations

Frequently Asked Questions (FAQ)

Q1: What is the warranty period for this 100KW 209KWH BESS system?

The battery modules come with a 10-year performance warranty (retaining 80%+ capacity). The inverter is covered by a 5-year standard warranty, extendable to 10 years. The outdoor cabinet, BMS, and accessories carry a 3-year warranty. Full after-sales support and spare parts are available through our global service network.

Q2: Can this system operate in off-grid (island) mode?

Yes. The 100KW hybrid inverter supports both on-grid and off-grid operation with automatic switching (<10ms transfer time). In off-grid mode, the system manages PV charging, battery discharging, and can handle generator input for hybrid operation.

Q3: How long does it take to fully charge the 209KWH battery?

With the 100KW hybrid inverter's AC charging capability, a full charge from empty takes approximately 3 hours. With the 104KW PV array (160 x 650W panels), the system can achieve full charge in 2-3 hours under peak sun conditions.

Q4: What is the operating temperature range of the battery cabinet?

The cabinet is designed for -20C to +55C ambient temperature with built-in air conditioning maintaining optimal battery temperature (15-35C). Aerosol fire suppression and smoke detection ensure safety across extreme climates.

Q5: Is the system compatible with existing solar installations?

Yes. The inverter has a wide MPPT voltage range of 150-850V DC, making it compatible with most existing solar arrays. The system can be configured as a retro-fit solution to add battery storage to an existing grid-tied PV system.

Q6: What safety certifications does the system have?

The system is fully certified with CE, TUV, IEC 62619 (battery safety), UN38.3 (transportation), and IEC 62109 (inverter safety). The cabinet includes aerosol fire suppression, smoke detection, and Grade A+ LiFePO4 battery cells.

Q7: What is the total weight and dimensions of the package?

The complete system package measures approximately 30 CBM (cubic meters) and weighs approximately 9864KG. Forklift pockets and lifting lugs are provided on cabinets for transport and installation.

Q8: How is after-sales technical support provided?

We provide 24/7 online technical support via phone, email, and remote monitoring platform. On-site commissioning support is available. Spare parts are stocked at regional warehouses for quick dispatch. Remote firmware updates and system diagnostics are supported through the built-in IoT module.

* Specifications are subject to change without notice. Contact our sales team for the latest technical datasheet and customized configurations.
