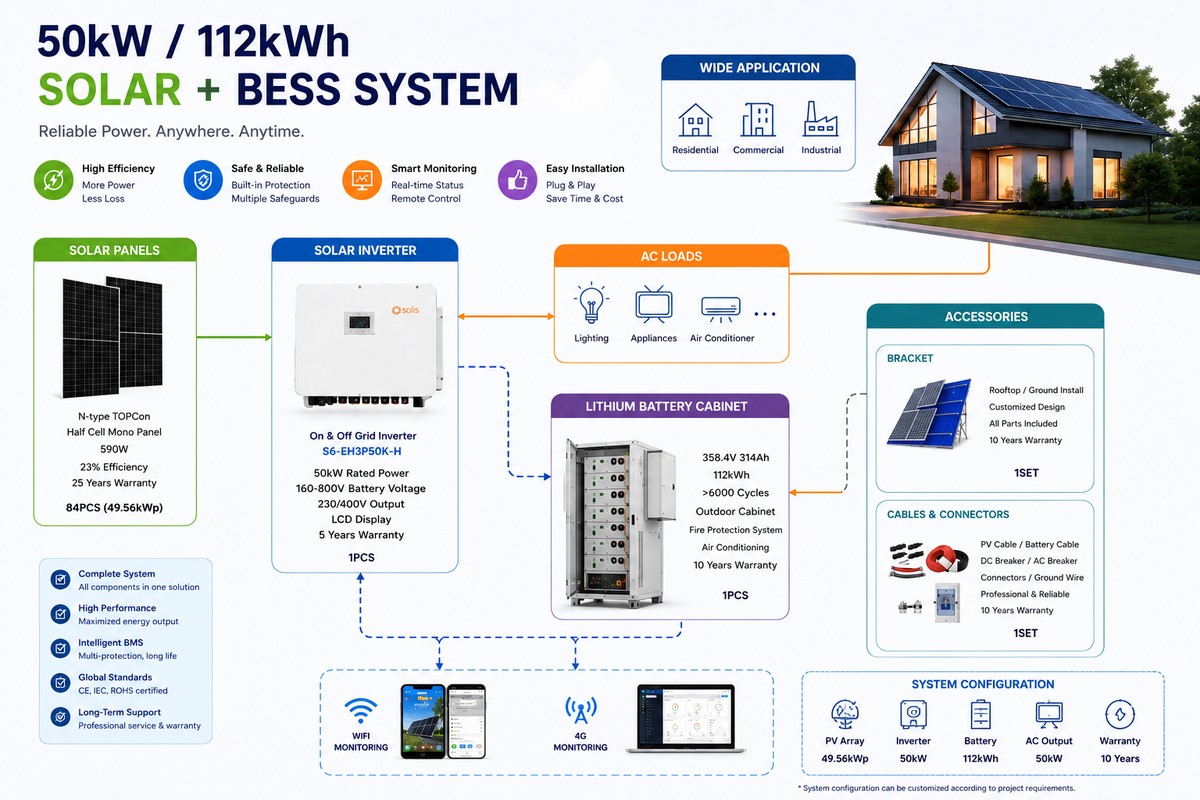

50KW 112KWH BESS Energy Storage System | Commercial Solar Battery Cabinet

Highlights:

• High-capacity 112KWh LiFePO4 battery storage (358.4V 314AH) with >6000 cycles @ 80% DOD
• 50KW hybrid inverter with built-in AC charger, MPPT 150-850V, LCD display & grid bypass
• Complete all-in-one outdoor cabinet: HVAC cooling + smoke detection + aerosol fire suppression
• 84pcs 590W N-type TopCon solar panels (49.56KW total), 23% efficiency, CE/TUV certified
• Peak shaving, demand charge reduction & time-of-use optimization
• Multi-cabinet parallel connection for easy capacity expansion as your business grows
• Compact small-size design saves valuable floor/chassis space

	Solar Panel 1. Using N-type 16-18BB solar cell, the power generation efficiency is 25.5% 2. Using fully automatic slicing process,100%guarantees that there are no gaps in solarcell. 3. Quality control:Cell efficiency /cell power sorting 4. 4times EL test 5. The automatic confluence welding processof cells is adopted to ensure no false welding 6.Fully automatic glue filling process toensure the service life of solar panels up to 30 years 7. Packed in wooden boxes to ensure the safe delivery of the goods
	On and off grid hybrid inverter 1.Perfect function: get the power to the grid,AC Grid Charger Build In 2. Protective Functions: Protection Against Over load, Short-Circuit, Over Heat, 3. Anti-isolated Island Efficiency,Polarity Joint-Reversed，5Years Warranty
	[Key Specifications] • Rated Power: 50KW • Battery Capacity: 112KWH (358.4V 314AH) • Battery Configuration: 16KWH × 7 modules • Cycle Life: >6000 cycles • Inverter: 50KW hybrid on/off-grid with built-in AC charger • Solar Panel: 84pcs 590W N-type TopCon (48V, 23% efficiency) • System Daily Output: 300KWH • Max Load Power: 50KW

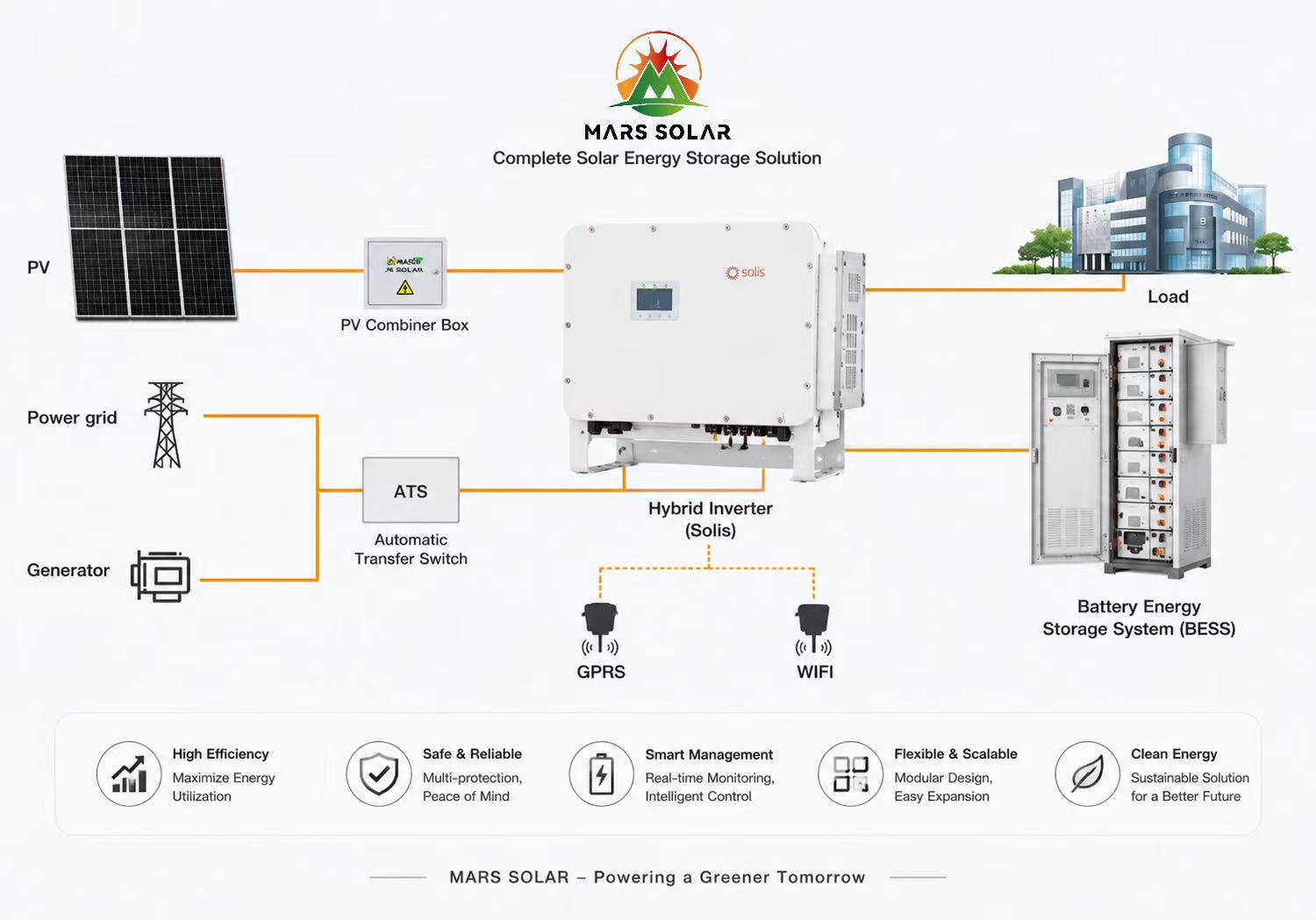

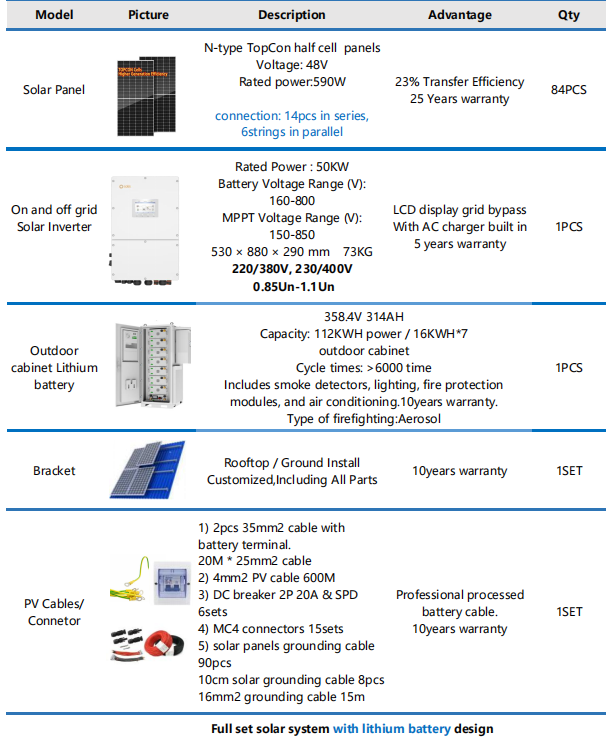

System Configuration

FAQs

Q: What is the difference between 50KW and 40KW models?

A: The 50KW model offers higher power output (50KW vs 40KW) and larger battery capacity (112KWH vs 96KWH), with 84pcs solar panels (49.56KW) vs 70pcs (41.3KW). Ideal for facilities with higher energy demands.

Q: Can this system reduce my electricity bills?

A: Yes, through peak shaving and solar self-consumption, typically saving 20-40% on electricity costs depending on your utility rate structure.

Q: Is professional installation required?

A: Yes, we provide free system design and online installation guidance. Local technicians can handle the installation with our remote support.

Q: How long is the battery cycle life?

A: >6000 cycles at 80% depth of discharge, with 10-year warranty on the battery system.

Q: Can it integrate with existing solar panels?

A: Yes, the hybrid inverter supports grid-tied solar integration. Contact our engineering team for site-specific configuration.

Q: Does it work during grid outages?

A: Yes, the hybrid inverter has grid bypass function and provides seamless backup power when the grid goes down. The system automatically switches to island mode within milliseconds.
