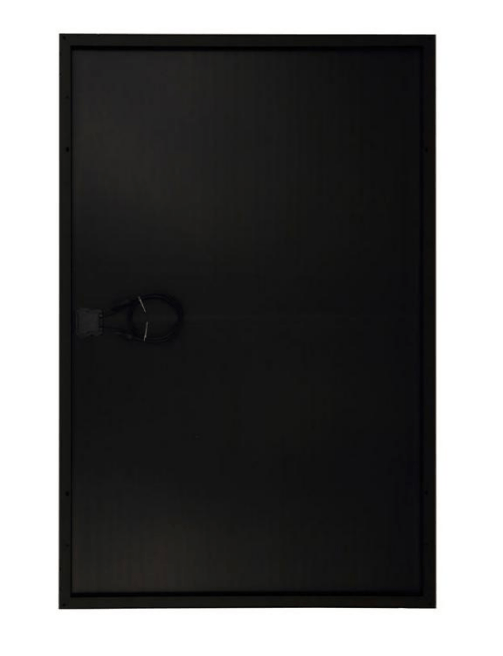

400W 405W 410W 415W 420W  Full Black Solar Panel On Roof
All Black Solar Panel
All Black Solar Panel
All Black Solar Panel

400W 405W 410W 415W 420W Full Black Solar Panel On Roof

Solar Panel Power:540W 545W 550W 555W 560W Use Life:30Years Efficiency:22% Warranty:15Years For Materials Warranty,30Years For Efficiency Warranty.

Product Specification:
  • Solar Panel Power: 540W 545W 550W 555W 560W Use Life
Inquiry Now
  1. Product Details
  2. Download

Black Solar Panels

Black Solar Panels

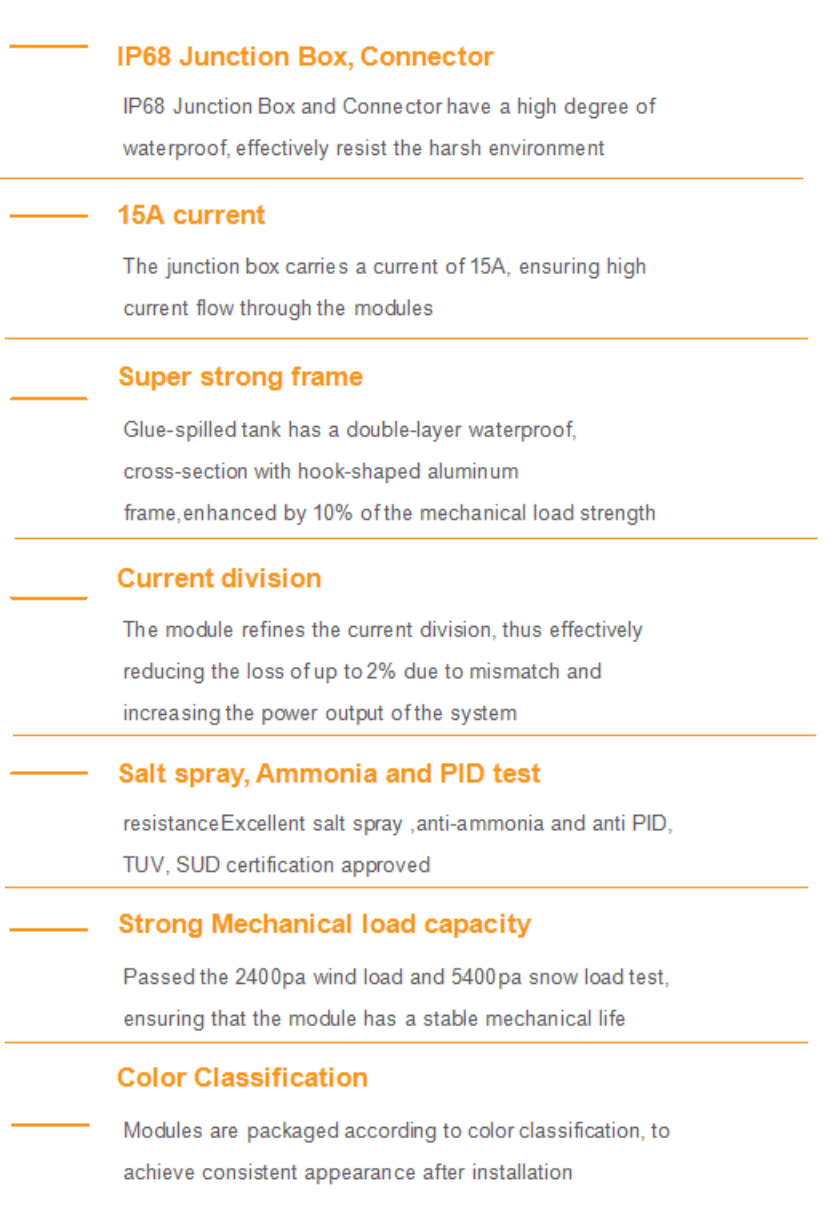

Features

  1.  Nominal 36V DC for standard output.
  2.  Efficiency: 20.85%( Use Solar cell with 23% Efficiency).
  3.  Outstanding low-light performance.
  4.  High transmission tempered glass.
  5.  Rugged design to withstands high wind pressure and snow load, easy installation.
  6.  Aesthetic appearance.
  7.  Design to meet unique demand of customer.
  8.  25 year module output warranty.

Black Solar Panels

Black Solar Panels

Black Solar Panels

Black Solar Panels

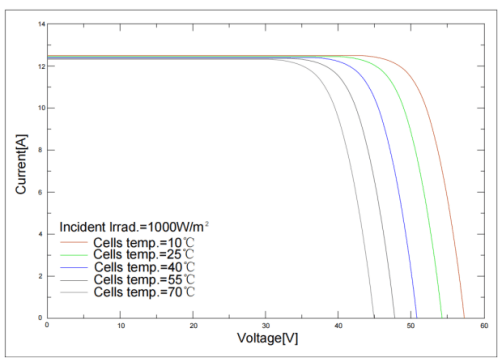

Electrical Characteristics

Maximum power at STC(Pmax)

400W

405W

410W

415W

420W

Optimum operating voltage(Vmp)

37.78V

37.82V

38.31V

38.32V

38.44V

Optimum operating current(Imp)

10.59A

10.72A

10.71A

10.83A

10.93A

Open-circuit voltage(Voc)

43.50V

43.58V

43.61A

43.66V

43.68V

Short-circuit current(Isc)

11.33A

11.43A

11.44A

11.53A

11.54A

Short-circuit current temperature coefficient                 (0.065±0.015)%/℃

Open-circuit voltage temperature coefficient                   -(80±10)mV/℃

Peak power temperature coefficient                           -(0.5±0.05)%/℃

NOCT (Air 20℃; Sun 0.8kW/m wind 1m/s)                      47±2℃

Operating temperature                                     -40℃ to 85℃

Maximum system voltage                                  1000V DC

Power tolerance                                           ±3%







































STC: lrradiance 1000W/m2,Module temperature 25℃,AM=1.5
