What Is On And Off Grid Solar System?

0

Published by Mars April 01,2021

Q1:What are the components in the on and off grid solar system?



A1:The on and off grid solar system include solar panel,solar hybrid inverter,battery,solar panel bracket,cable and connector.

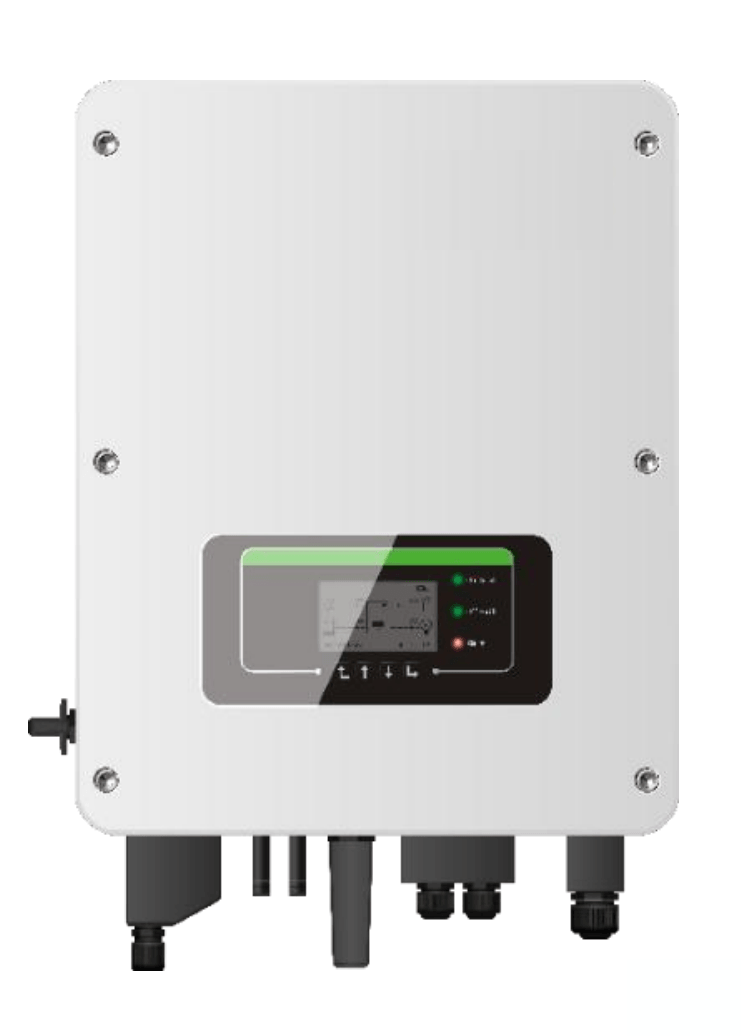

Solar panel Solar hybrid inverter

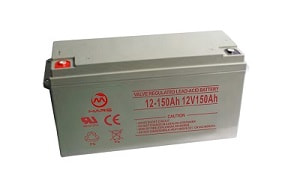

Battery(Gel battery

/Lithium battery for optional)

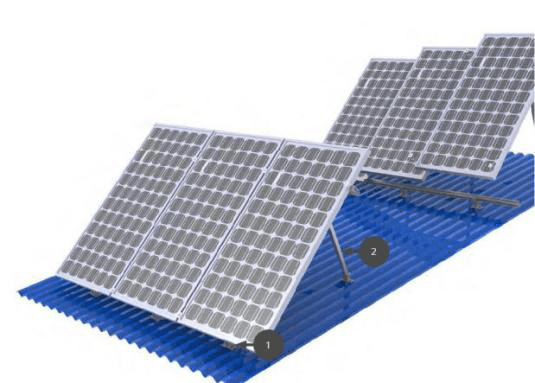

solar panel bracket

/cable and connector

on and off grid solar system on and off grid solar system

on and off grid solar system

on and off grid solar system

on and off grid solar system

on and off grid solar system

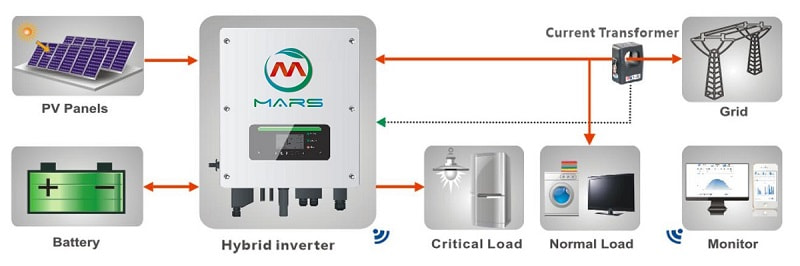

Q2:What are the working way for on and off grid solar system?



A2:1)on and off grid solar system supply solar power to  loads directly,if solar power is excess, the power will charge to battery automatically.When the

battery power is full also, inverter will send the excess power to grid.


2)When the on and off grid solar system only generate few power,solar power supply to load,the insufficient part is replenished by the city power.


3)When the grid shut down,on and off grid solar system  will switch to off grid status,transfer solar DC power to AC power, supply solar power directly to the load.When the solar panel can not provide enough  power to

the load,it will use battery power,transfer battery power to the load.





On Grid And Off Grid Solar System In Hindi







Q3:Which areas are suitable to use the on grid and off grid solar power system?



A3:

1)The area have good sunshine;

2)The area allow to connect with grid and sell the solar power to grid.But sometimes,it have power cut,so want to use battery power in that time;

3)The area allow to connect with grid,but not allow to sell the additional solar power to grid,in the future,it will allow to sell the additional solar power to grid;

4)The area electricity bills are calculated in time intervals,the price of electricity like 0 am to 6 am is cheap, and it is more expensive at other times.We can set the solar hybrid inverter charge the battery in cheap electricity price period,supply battery power to you in expensive electricity price period;

5)The area not have grid power,but it will have grid power in the future.on grid and off grid solar power system allow to work solar panel and battery only,city power and battery only,solar panel/battery/city power.







Q4:What are the working mode for on grid and off grid solar power system?

A4:Automatically mode:

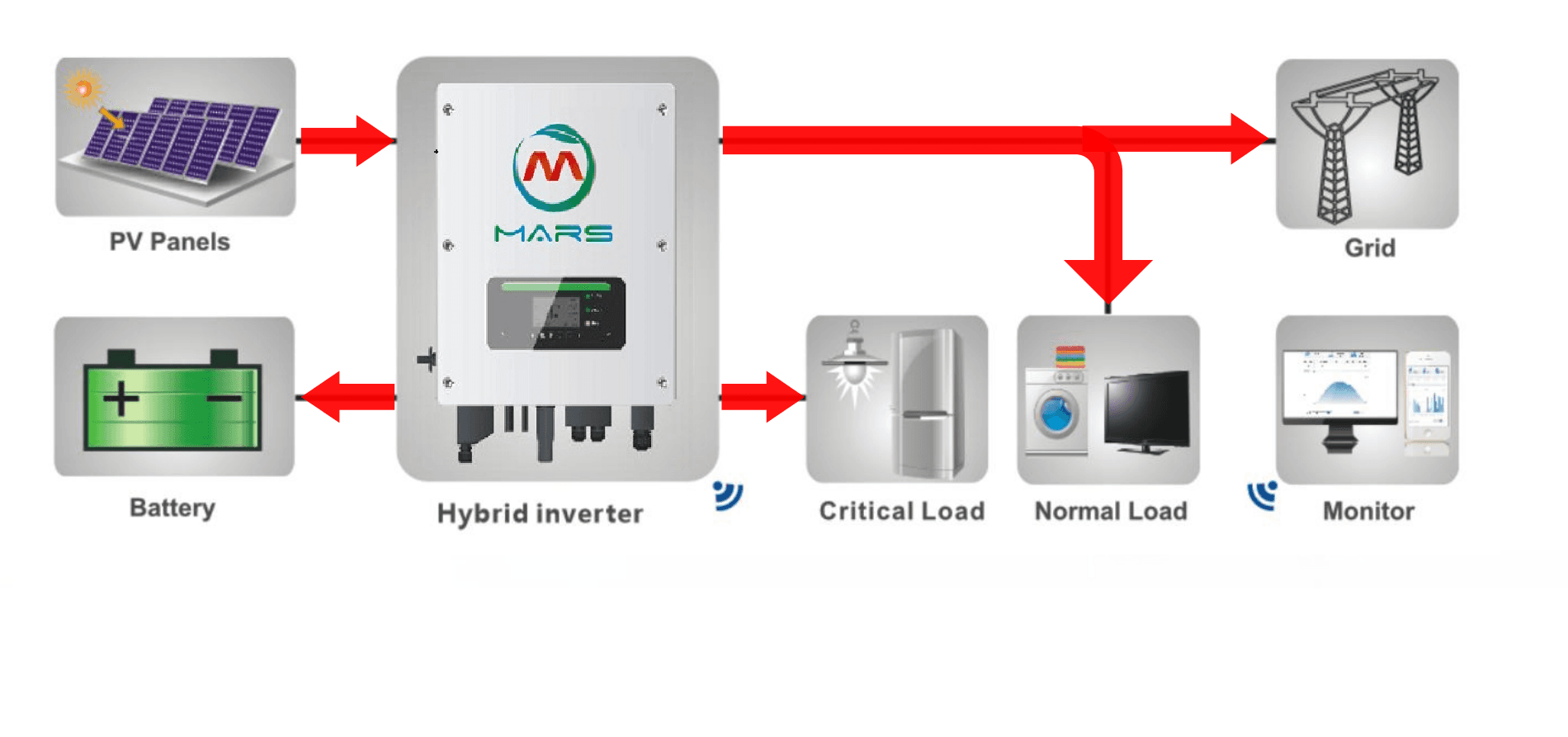

When it have sufficient sunshine,the on grid and off grid solar power system supply power to your appliance,additional power will store in battery,if the battery is full,then send the additional power to grid.



On Grid And Off Grid Solar System In Hindi

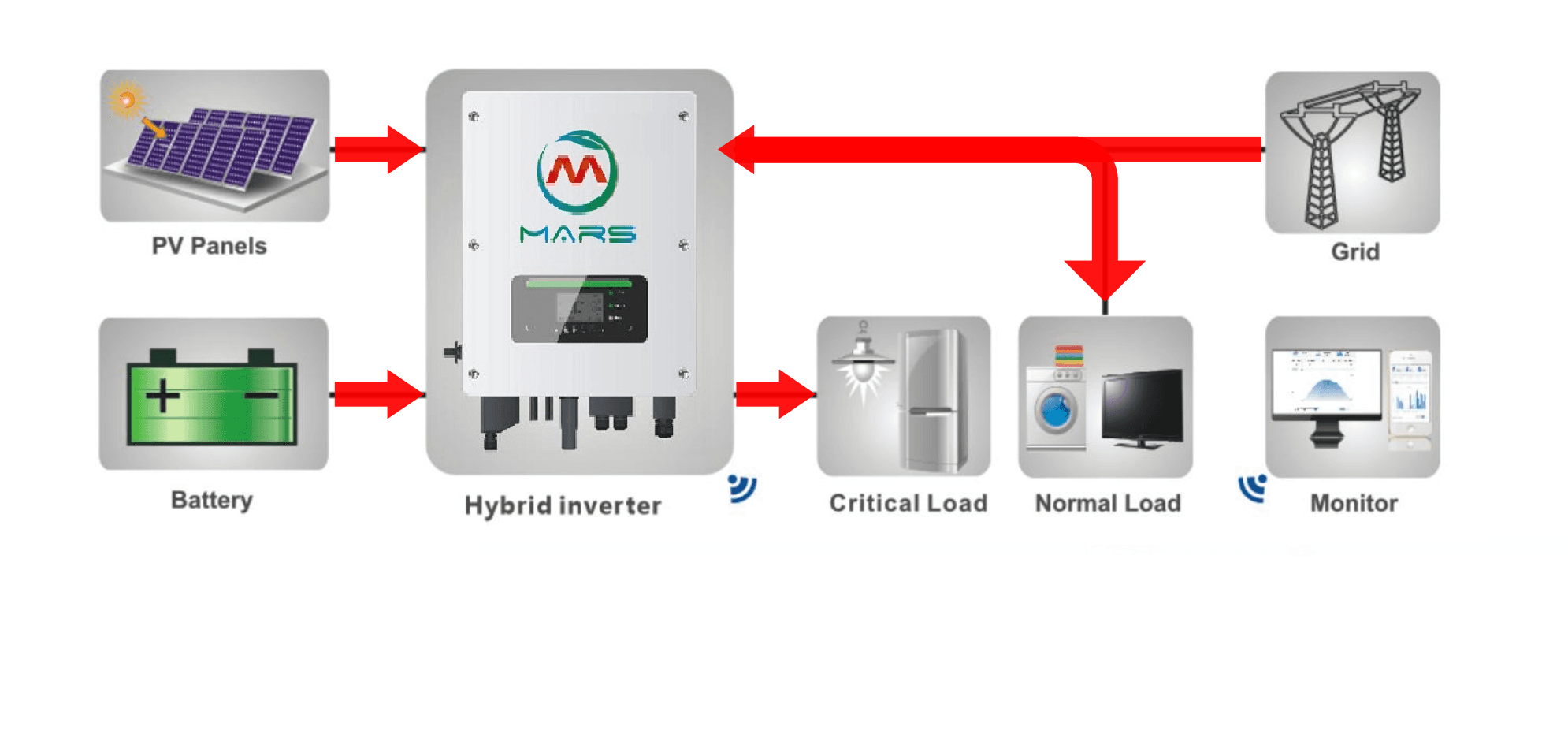

When it don't have sufficient sunshine,the on grid and off grid solar power system supply power to your appliance,the missing part is supplemented by battery and city power.



On Grid And Off Grid Solar System In Hindi

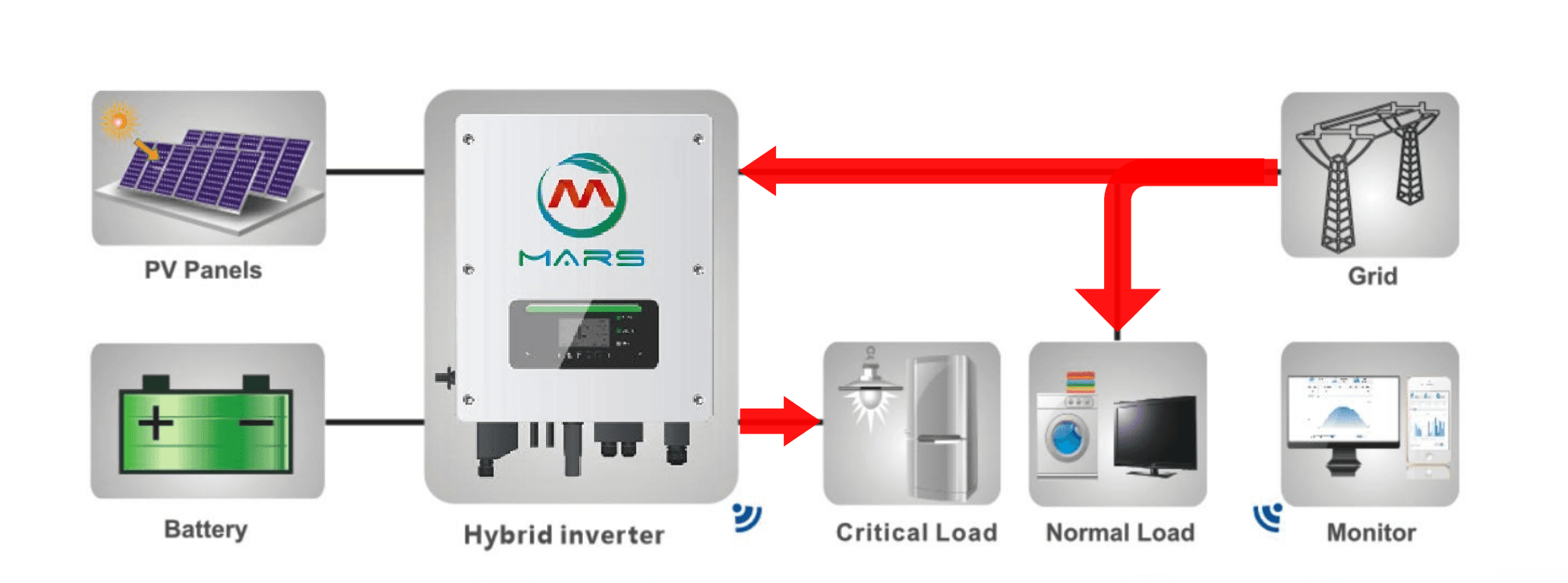

When it don't have sufficient sunshine,batteries are empty,then use grid power.



On Grid And Off Grid Solar System In Hindi







Off grid power supply mode:

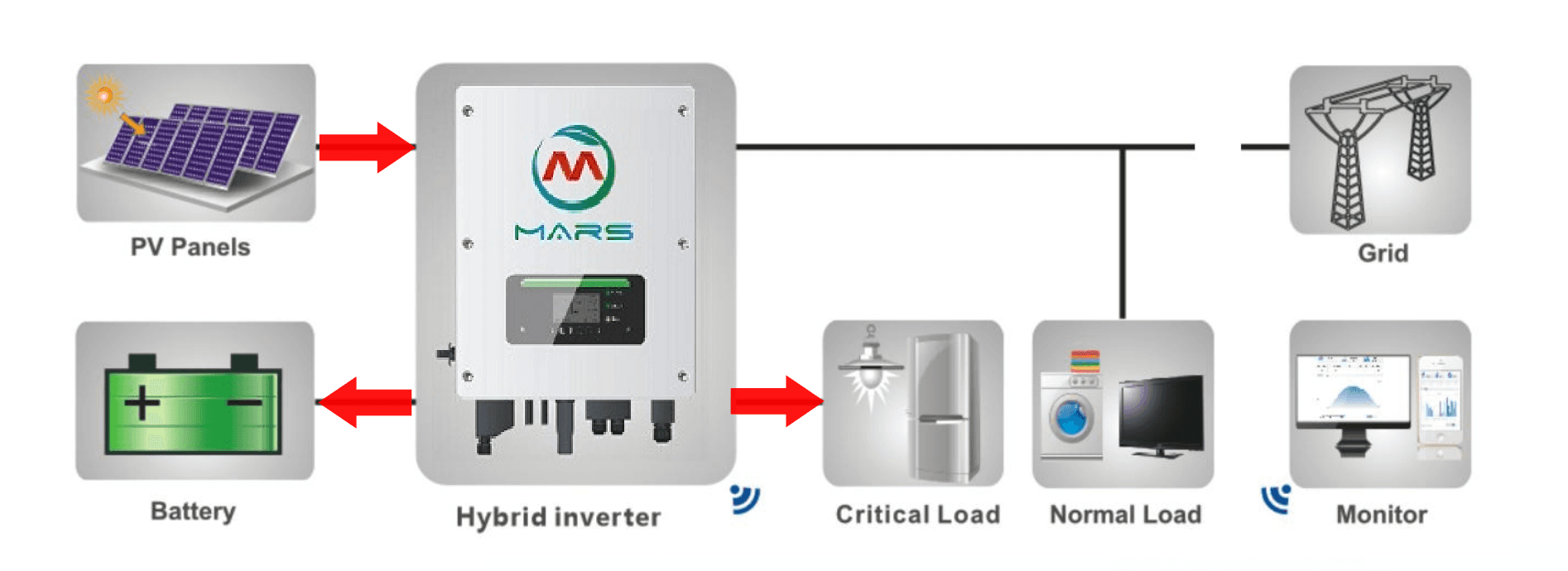

When it have sufficient sunshine,the on and off grid solar system supply power to your appliance,additional power will store in battery.



On Grid And Off Grid Solar System In Hindi





When it don't have sufficient sunshine,the on and off grid solar system supply power to your appliance,the missing part is supplemented by battery and grid power.



On Grid And Off Grid Solar System In Hindi

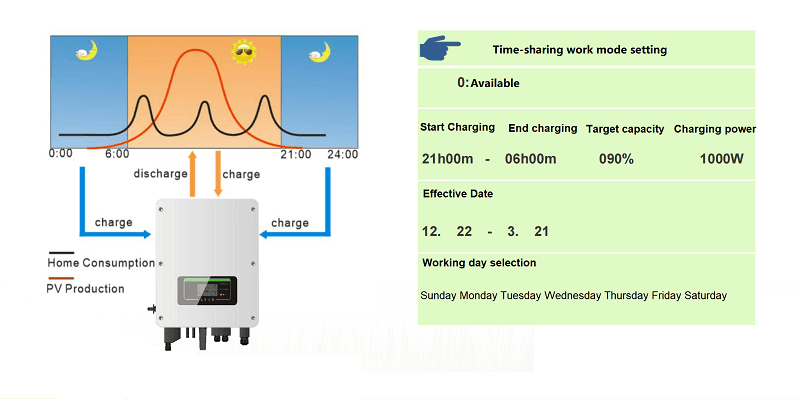

Time-sharing electricity billing mode

charge the battery in the time when the electricity prices are cheap.



On Grid And Off Grid Solar System In Hindi



Off-grid mode:



When the sun is sufficient,the on and off grid solar system supply to your appliance,additional power will store in battery.



On Grid And Off Grid Solar System In Hindi

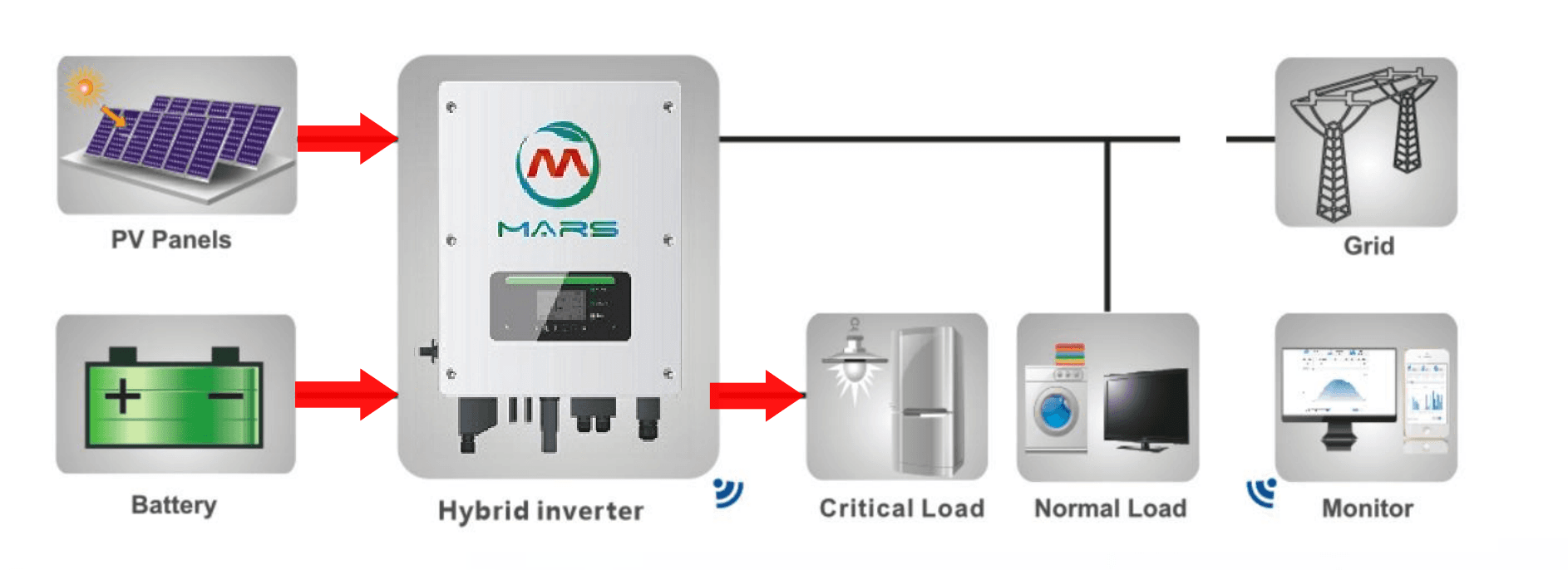

When the sun is unsufficient,the solar power and battery power supply to your appliance at the same time.



On Grid And Off Grid Solar System In Hindi





Q5:What are the on grid and off grid solar power system model?

A5:

3KW 220VAC single phase on grid and off grid solar system:https://www.solarpowermanufacturer.com/solar-products/solar-power-system/On-And-Off-Grid-Solar-System/on-and-off-grid-solar-system.html

5KW 110VAC 220VAC single phase on grid and off grid solar system:

https://www.solarpowermanufacturer.com/solar-products/solar-power-system/On-And-Off-Grid-Solar-System/on-grid-and-off-grid-solar-system-in-hindi.html

6KW 110VAC 220VAC single phase on grid and off grid solar system:

https://www.solarpowermanufacturer.com/solar-products/solar-power-system/On-And-Off-Grid-Solar-System/on-grid-and-off-grid-solar-power-system.html

8KW 110VAC 220VAC single phase on grid and off grid solar system:https://www.solarpowermanufacturer.com/solar-products/solar-power-system/On-And-Off-Grid-Solar-System/on-and-off-grid-hybrid-solar-system.html

10KW 380VAC three phase on grid and off grid solar system:

https://www.solarpowermanufacturer.com/solar-products/solar-power-system/On-And-Off-Grid-Solar-System/on-grid-off-grid-solar-system.html

< >
