Reliable Quality 2KW Solar Winds Power System For Home
Solar Windmill
Solar Windmill

Reliable Quality 2KW Solar Winds Power System For Home

2KW solar winds power system help you save 90% electricity bill.

Product Specification:
  • Output voltage: 110V/220V/230V/240VAC
Inquiry Now
  1. Product Details
  2. Download

Reliable Quality 2KW Solar Winds Power System For Home Solar Wind Hybrid SystemSolar Wind Hybrid System

2KW Solar Winds System

Solar Wind Hybrid System

2pcs 250W  monocrystalline  solar panel

A grade SUNTECH cells of high efficiency 21%

Vmp:34.2V  Voc:43.2V  Imp:7.27A

Size : 1640*983*35mm

Operating temperature:-20℃~+80℃

25 years life time, CE ROHS approval

Solar panel bracket: Slope roof or Flat roof or Ground optional

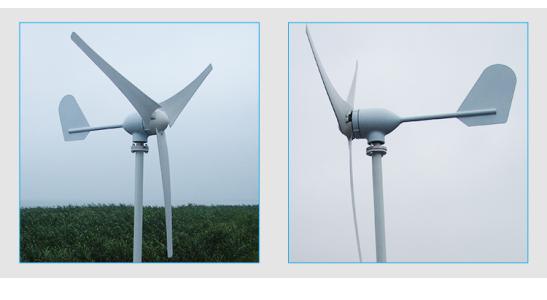

Wind generator power:1000W

Max power:1500W   Working voltage:48V

Working wind speed:3m/s-20m/s

Survived wind speed:45m/s

3years warranty,20year use life.

Guy cable pole:3meters(optional)

Solar Wind Hybrid System
Solar Wind Hybrid System

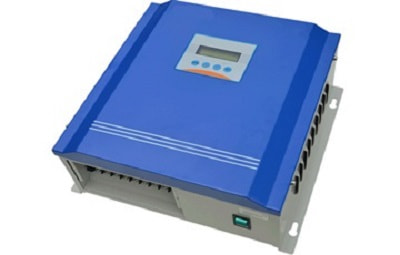

Input 500W solar power+1000W wind power  DC 48V input; Protection Function: Solar reverse charge protection , Solar reverse connection protection, Battery-over-charge-protection Battery-reverse connection protection.

Rate output Power:2000W pure sine wave

DC48V ;  Output:110V,120V,220V,230V,240V

With AC charger build-in,Protection against overload,

short circuit, anti-reverse, discharger, etc.

Optional charge by generator

Solar Wind Hybrid System
                Solar Wind Hybrid System

4pcs Capacity:12V/150AH

Deep cycle maintenance-free gel battery,   Service life:6-8 years

Size:483*170*219mm

1)5pcs 16mm2*1M battery connect cable

2)4mm2 PV cable 50M

3)terminals and MC4

Solar Wind Hybrid System

2000W solar winds power system Load reference

Load name Load’s watt Qty Total watt
Lights 11W 6 66W
Fan 80W 2 160W
Computer 100W 2 200W
Washing machine 250W 1 250W
Electric cooker 300W 1 300W
Satellite TV receiver/VCD 25W 1 25W
Color TV 100W 2 200W
Water pump 200W 1 200W
Refrigerator 150W 1 150W
Total 1551W

Remark:water pump is inductive load ,start working power is 3-6 times more than normal power ,in the process of use ,turn on the inductive load first. Solar Wind Hybrid SystemSolar Wind Hybrid SystemSolar Wind Hybrid SystemSolar Wind Hybrid System           Foshan Mars Solar Technology Co.,Ltd have more than 10 years factory experience for solar winds power products,solar street light products,inverter products,wind and solar power system products,solar appliance products.More than 3000 successfully case have installed in 130+ countries.Germany technology,China price,Global service. Sincerely welcome everyone join us and develop solar business. Solar Windmill Solar Windmill Solar WindmillSolar Windmill Solar Windmill Solar Windmill

Solar WindmillQ:Which solar winds system is suitable for me?
A:Mars solar winds system can be used in homes, offices, villas, hospitals, churches, etc.Mars manufacture solar winds system from 300W to 30KW, you can choose according to your own needs.if you do not know which model system is suitable for you, you can consult us.Our 10years experience sale manager will help you configure the system in 12hrs.



Q:Why choose to use the MARS solar winds power system?

A:Solar winds power system is now the most environmentally friendly energy source in the world. Using the MARS solar winds power system can reduce your electricity bill by 90%.We have 10+years experience in solar winds power system products,we have exported to more than 130 countries and regions.We have professional installation team. if necessary,we can send engineer to your country, guide the installation.We have our own factory, use USA and Japan brand power materials,perfectly for quality control.We have developed some agent, convenience to provide after sale service to customer


Q:How long is the lead time of orders?
A:Goods can be ready for shipment within 7-15 working days upon payment.If we have stock material.It only take 1-2 days to send goods.

Q:What"s the warranty of products?
A:Suggest buy whole solar winds system from our factory, solar panel have 10 years warranty,wind turbine have 3years warranty,other parts all have 2 years warranty;During the warranty, will ship the free parts for service ,we promise our quality.

Q:Can I install it myself?
A:We provide installation drawing and user manual for you,guide the installation.If necessary,we can send our engineer come to country,and guide the installation.

Q:How to calculate the freight?
A:We will calculate according to the specific location and transportation method, you can discuss it in detail with us.

Q:Can we get support if we have our own market position?
A:Please inform us your details market demand we will discuss and propose helpful suggestion for you to find the best solution for you.
