40KW 96KWH BESS Energy Storage System | Industrial Solar Battery Cabinet

40KW 96KWH BESS Energy Storage System

The 40KW 96KWH BESS (Battery Energy Storage System) is a complete industrial-grade energy storage solution designed for commercial and industrial applications. This all-in-one outdoor cabinet integrates high-efficiency lithium battery modules, a 40KW hybrid inverter, and intelligent BMS for reliable peak shaving, solar energy storage, and backup power.

[Key Specifications]
• Rated Power: 40KW
• Battery Capacity: 96KWH (307.2V 314AH)
• Battery Configuration: 16KWH × 6 modules
• Cycle Life: >6000 cycles
• Inverter: 40KW hybrid on/off-grid with built-in AC charger
• Solar Panel: 70pcs 590W N-type TopCon (41.97V, 23% efficiency)
• System Daily Output: 247.8KWH
• Max Load Power: 40KW

[System Components]

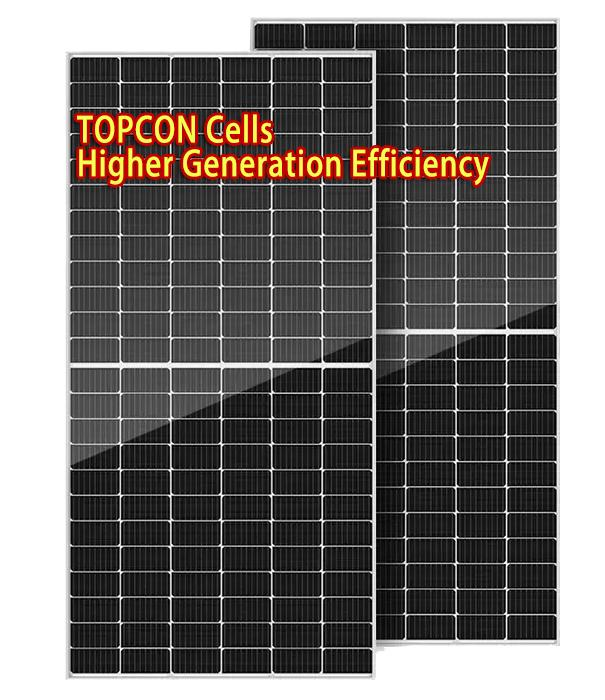

1. Solar Panels: 70pcs 590W N-type TopCon half-cell mono panels, 25 years warranty

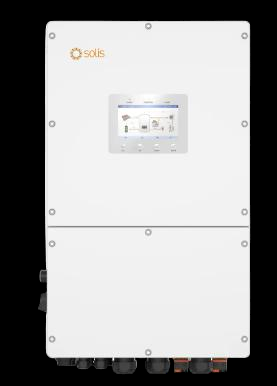

2. Hybrid Inverter: 40KW S6-EH3P40k-H, 150-850V MPPT range, 5 years warranty
3. Battery Cabinet: Outdoor IP-rated cabinet with smoke detectors, lighting, fire protection (aerosol), and air conditioning
4. Mounting Bracket: Rooftop/Ground install, customized, 10 years warranty
5. Cables & Connectors: Professional battery cables, PV cables, DC breakers, SPD

[Applications]
• Factory peak shaving and load shifting
• Solar + storage hybrid systems
• Commercial backup power
• Microgrid energy management
• EV charging station power supply

[Warranty & Service]
• Solar Panels: 25 years
• Inverter: 5 years
• Battery System: 10 years
• Free system design service
• Online installation guidance
• Engineer on-site support available

[Packaging & Delivery]
• Total Volume: 12CBM
• Total Weight: 2940KG
• Delivery: 7-45 working days after payment
• MOQ: 1 set
• Price Term: EXW factory price
