Mars solar inverter online 2kw for home power solar system

On Grid solar inverter online for home use solar power system.

Product Specification:
  • Product name: 2KW Solar inverter For Home Use
Inquiry Now
  1. Product Details
  2. Download

Mars solar inverter online 2kw for home power solar system

solar inverter online

Description of this solar inverter online
1.Real time monitors solar inverter online remotely by data logger
2.Multilingual support available
3.Efficient non-isolated topological structure
4.Temperature range -25’C to 60’C, Compact design, easy to install

Performance Feature
1.Controlled by TI Digital DSP
2.Controlled by high efficient MPPT to track the maximum PV output, MPPT rate >99%
3.Pure sine wave output, automatic synchronization to grid, low harmonics
4.Anti-island protected by disturbance detection
5.Excellent functions of protection and alarm
6.Optional CAN, Ethernet, RS485, Bluetooth ports and remote data collection

solar inverter online

solar inverter online 2kw



Item

HBF2K

Type

IP65

Input DC

Max DC power

2.3KW

Max. DC input voltage

500V

MPP voltage range

180V-500V

Maximum input current

11A

Number of MPP inputs

1

Number of DC inputs

1

Output AC

Rated power

2000W

Rated AC voltage / Range

220V230V/240V / 180V-270V

Rated frequency (Hz)

50Hz/60Hz

Max. output current (A)

9A

THD (rated power)

<3.5%

Connection phases

Single-phase

Efficiency

Max. efficiency

98.5%

European efficiency

98.0%

MPPT efficiency

99.9%

Protection

Grid protection

Anti-island protection,Grid high voltage/low voltage protection,grid high frequency/low frequency protection

solar inverter online protection

DC input switch,Output short-circuit protection,over-heat,overload protection

Safe standard/EMC

EN61000-6-2,EN61000-6-3,EN61000-3-3,EN61000-3-11,EN61000-3-12,EN/IEC62109-1,EN/IEC62109-2

On grid standard

VDE-AR-N4105,VDE0126-1-1,BDEW2008,ENEL-GUIDELINE,CEIO-21 G59/2,G83/1-1,AS4777,CGC/GF004:2011,IEC61727,IEC62116

Physical

Dimensions (W) (mm)

458*336*137

Weight (Kg)/per unit

15KG

Operating temperature range (℃)

-25~+60

Max self-consumption

<5W

Cooling concept

Forced cooling

Degree of Protection

IP65

Application

Relative humidity range (non-condensation)

0~95%

Max operating altitude above MSL

2000 m

Feature

Display

LCD

Communication interface

RS485

solar inverter online



solar inverter online

solar inverter online

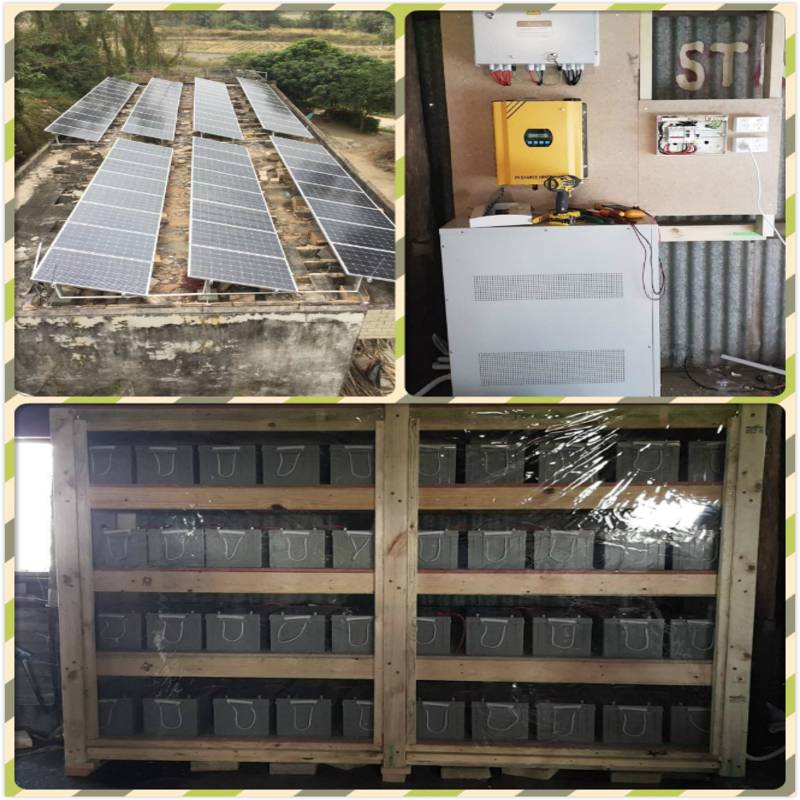

solar inverter online project In Kenya

solar inverter online

solar inverter online project In South africa

solar inverter online

solar inverter online project In Australia

solar inverter online

solar inverter online project In Zimbabwe

solar inverter online

   Foshan Mars Solar Technology Co.,Ltd have more than 10 years factory experience for solar power products,solar street light products,solar inverter online products,solar appliance products.More than 3000 successfully case have installed in 130+ countries.Germany technology,China price,Global service. Sincerely welcome everyone join us and develop solar business.

solar inverter online

solar inverter online

solar inverter and battery

solar inverter and battery

solar inverter and battery

Q:Are you factory?

A: Yes, our factory and sales department are located in Foshan and we would be pleased to welcome you in our factory at any time when you are in Foshan



Q:What is the warranty for this solar inverter online ?

A:YES,All products are at least 5 years warranty.



Q:What is the shipping way?

A:DHL,UPS,TNT,EMS,FedEx, Ship by sea.



Q:What is the payment method?

A:We normally require a T/T advance payment. 30% deposit and 70% before shipping. Western Union/Money Gram can also be used.



Q:Can we design packaing?

A:YES.We can customer's own packing





Q:Can we customize product?

A:YES.OEM&ODM.



Q:Are there some optional function for your solar inverter online ?

A:Yes,it have battery priority function, grid priority function, AC grid charger function, AVR function,RS232 interface telecommunication function. Solar system solar inverter online mostly use battery priority function, AC grid charger function. It can make full use of solar power.



Q:what is MARS solar inverter online after sales service

A:during the warranty ,ship free PCB by DHL or FEDEX.
